Fuel oil gas atmospheric AGHW Series
  • Fuel oil gas atmospheric AGHW Series

AGHW Series Fuel and Gas Atmospheric Pressure Hot Water Boiler

Brand: Delivery Date: 5-10 days Place of Origin: Made in China China Shipping: WorldwideKey Features: High-efficiency and compact boiler, energy-saving, with advanced controls and safety features, eco-friendly.
Contact us on WhatsApp

Technical Parameters

Item CLHS0.06-85/65-Y(Q) CLHS0.12-85/65-Y(Q) CLHS0.24-85/65-Y(Q) CLHS0.35-85/65-Y(Q) CLHS0.5-85/65-Y(Q) CLHS0.6-85/65-Y(Q) CLHS0.7-85/65-Y(Q)
Rated Calorific Power(MW) 0.06 0.12 0.24 0.35 0.5 0.6 0.7
Working Pressure(MW) Normal Pressure
Rated Outlet Water Temperature(℃ ) 85
Rated Return Water Temperature(℃) 65
Thermal Efficiency(%) 93 ~ 94
Water Capacity(L) 95 170 342 550 736 1000 1280
Water Outlet(mm) 40 40 65 80 80 80 100
Water Inlet(mm) 40 40 65 80 80 80 100
Drain valve(mm) 40 40 40 50 50 50 50
Power Consumption(Kw/h) 0.3 0.4 0.8 1 2.3 2.3 3.3
Chimney(mm) 180 180 180 240 240 300 300
Overall Dimension Length(mm) 630 750 950 1110 1310 1310 1450
Width(mm) 630 750 880 1040 1140 1240 1380
Height(mm) 1150 1380 1700 1850 1960 2100 2250
Size of Base(mm) 580×580 700×700 880×880 1040×1040 1140×1140 1240×12400 1380×1380
Transport Weight(Kg/h) 200 380 446 720 775.1 1200 1900
Fuel Consumption Light oil(Kg/h) 5.6 11.3 22.5 32.8 45 56.3 65.7
LNG(Nm'/H) 6.8 13.6 27.3 39.8 54.6 68.2 79.6
CG(Nm3/H) 14.5 29 58 84.6 116 144.9 169.1
Notes:
1.LNG Calorific Value: 8500Kal/Nm3, Light Oil Calorific Value: 10300Kcal/Nm3,City Gas Calorific Value: 4000Kcal/Nm3;
2.Production should be according to the real object, Product subject to change without prior notice;
3.For the prefabrication, reserve, and boler room design, please contact the related person to recognize the relevant data.

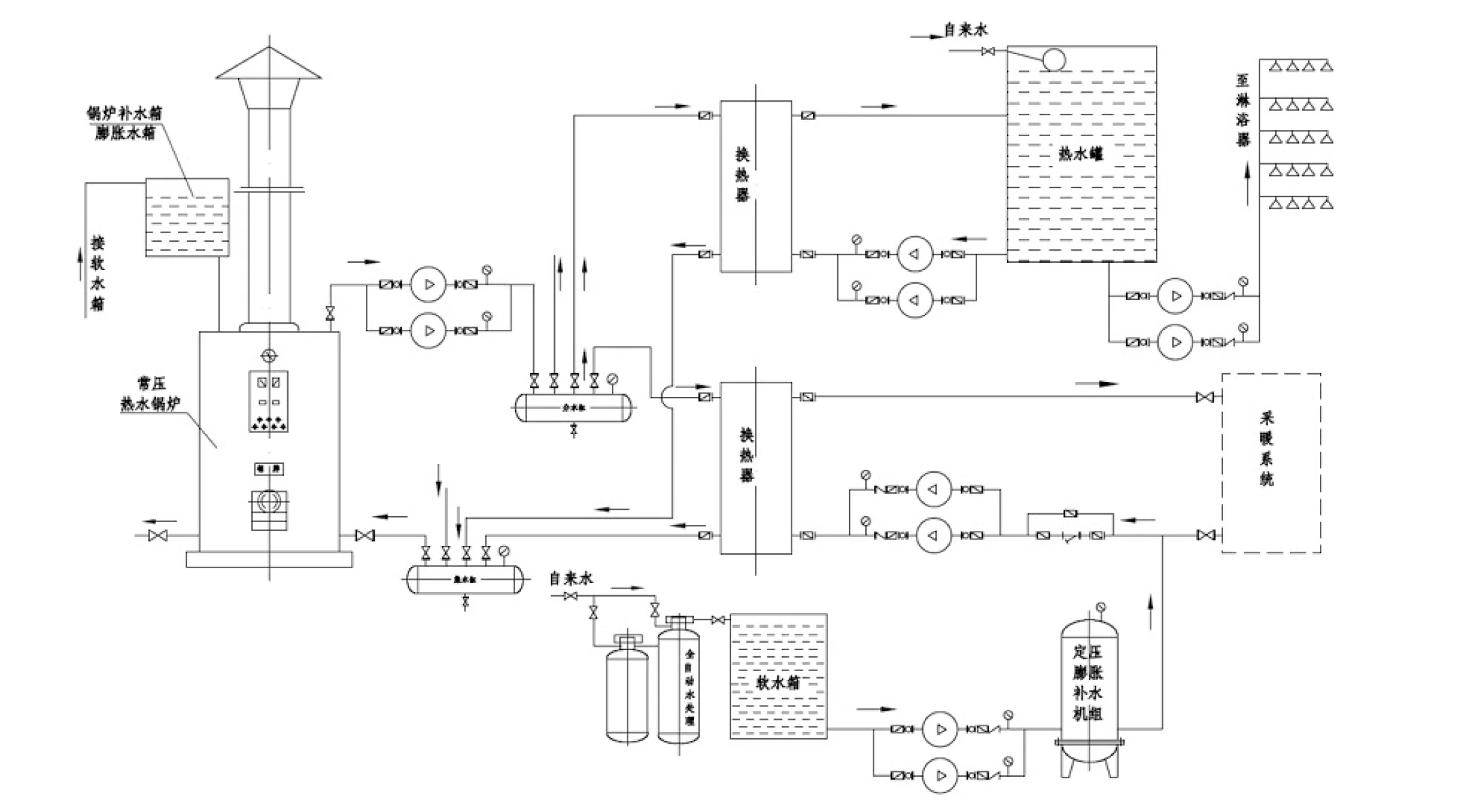

Supply Water and Heating System Schematic

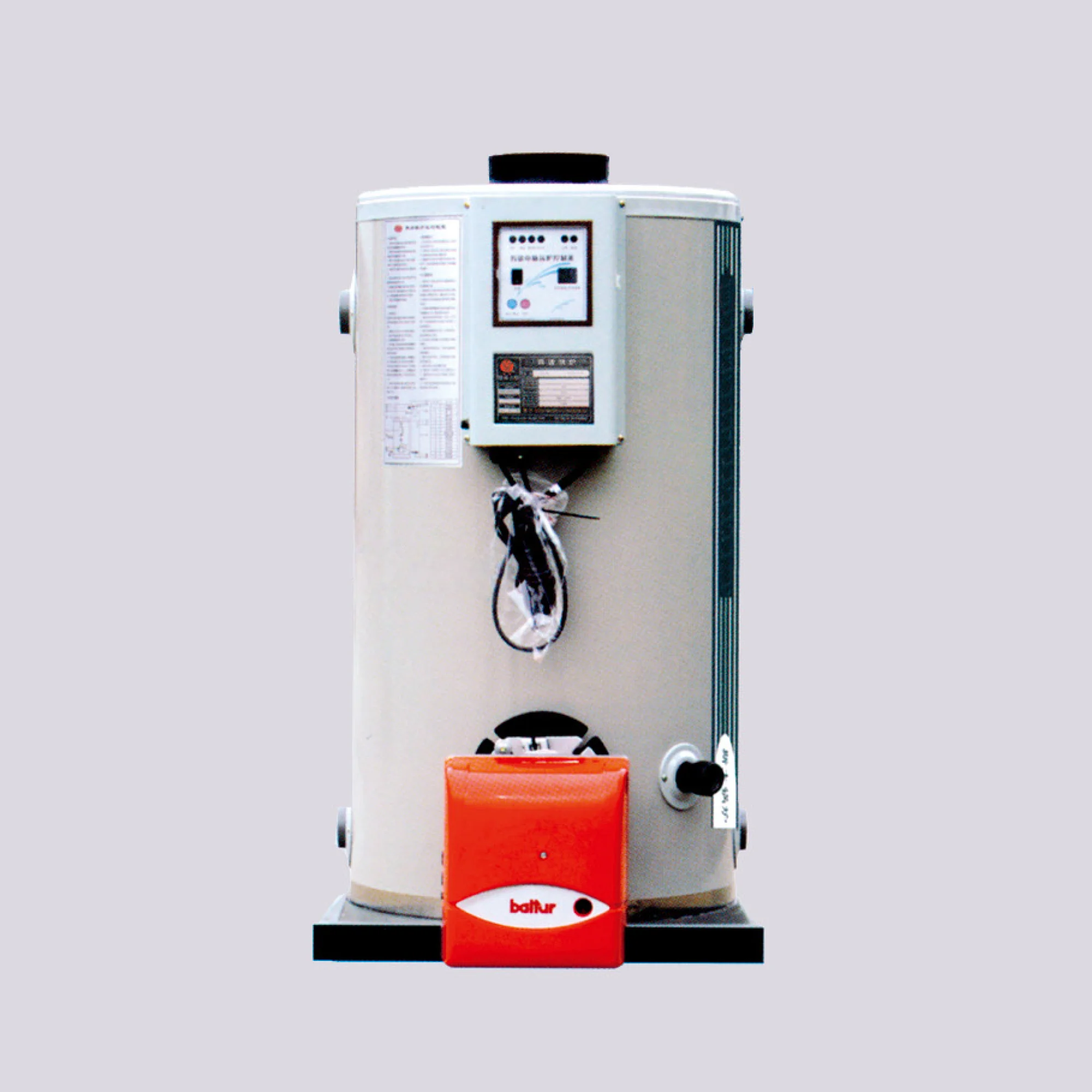

AGHW Series Fuel and Gas Atmospheric Pressure Hot Water Boiler

Why choose
AGHW Series Fuel and Gas Atmospheric Pressure Hot Water Boiler?

This uniquely designed boiler integrates a vertical fire-tube chamber with threaded smoke tubes, ensuring rapid heating and superior thermal efficiency. The structure is complemented by a spacious furnace that facilitates complete combustion of the fuel, leading towards enhanced energy efficiency and environmental friendliness. Additionally, the boiler's cylindrical shape minimizes floor space usage, and its visually appealing color-plated packaging, alongside high thermal resistance insulation, not only ensures aesthetic appeal but also promotes effective thermal retention.

Featuring globally recognized brand burners renowned for their quality and cutting-edge technology, the boiler offers a fully reliable combustion process. Comprehensive safety mechanisms are in place, including furnace purging, automatic ignition, ignition detection, high and low gas pressure protection, and leak detection, which altogether ensure the boiler's safe operation. An intelligent computer controller simplifies the operation, offering easy and efficient management, reliable performance, and an array of safety protections covering water shortage, thermal preservation, overpressure, fault self-check protections, and automatic burner modulation based on required intensity, further enhancing its user-friendly nature.

The emissions of dust and nitrogen oxides from this boiler meet national environmental protection standards, showcasing our commitment to sustainability and ecological responsibility. The advanced control systems, detailed operation logs, and freely adjustable temperature controls contribute to making this boiler a prime choice for efficient, user-friendly, and safe heating solutions that align with the rigorous demands of modern environmental stewardship.

Boiler Features

Unique large-scale combustion chamber design with a three-pass full wet-back structure, maintaining strong radiation heat transfer while achieving low burning, enhancing boiler thermal efficiency, reducing NOx emissions, efficient and environmentally friendly.
Efficient Heating: Implements a vertical fire-tube chamber with threaded smoke tubes for quick heating and high thermal efficiency.
Energy-saving and Environmentally-friendly: The large furnace design ensures extensive fuel combustion, resulting in energy-saving advantages and environmental conservation.
Compact and Aesthetically Pleasing: The cylindrical shape minimizes floor space usage, and the color-plated packaging ensures aesthetic appeal. High thermal resistance insulation promotes effective heat retention.
Advanced Technology: Uses globally recognized brand burners for reliable combustion. Comprehensive safety mechanisms such as furnace purging, automatic ignition, ignition detection, high and low gas pressure protection, and leak detection ensure the safe operation.
Intelligent Control: A built-in intelligent computer controller simplifies operation, offering easy management, and reliable performance. The controller provides protections for water shortage, overpressure, and self-check faults, and automatically modulates burner size and records operation time. It also allows free temperature setting.
Environmental Standards Compliance: The emissions of dust and nitrogen oxides meet national environmental protection standards, demonstrating our commitment to sustainability.

  • Host maintenance

    12 months

  • Auxiliary repair

    12 months

  • Guidance on installation

    Throughout

  • Guarantee

    Lifetime
