Fuel Oil Gas Through-flow Steam Boiler
  • Fuel Oil Gas Through-flow Steam Boiler

Fuel Oil Gas Through-flow Steam Boiler

Brand: Delivery Date: 5-10 days Place of Origin: Made in China China Shipping: WorldwideKey Features: The Fuel Oil Gas Through-flow Steam Boiler offers rapid steam generation, exceptional efficiency, environmental compliance, and cutting-edge monitoring technology, all built into a robust and high-quality system.
Contact us on WhatsApp

Technical Parameters

  Rated capacity Kg/h 300 500 750 1000 2000 3000 4000
Rated working pressure MPa 0.7 0.7 1.0 1.0 1.0 1.0 1.0
Full boiler capacity m3 0.134 0.19 0.206 0.256 0.49 0.61 0.8
Boiler efficiency % 92-99 92-99 92-99 92-99 92-99 92-99 92-99
Energy saver - 5.4 6.6 7.8 9 11.5 35 45
Combustion type 一 ON-OFF ON-OFF ON-OFF ON-OFF ON-OFF ON-OFF ON-OFF
Fuel
consumption 		Natural gas Nm3/h 22.6-21.8 37.7-36.3 56.5-54.4 75.3-72.6 150.7-145.1 226.1-217.7 290.2-301.4
Gas inlet diameter Kg/h 18.7 31.2 46.7 62.3 124.6 186.9 249.2
Total power consumption of boiler KW 1.35 2.45 3.2 3.9 11.4 19.3 22.8
Weight of equipment Kg ~ 900 1320 1630 2050 2990 3345 3985
接
管
口
径 		Gas inlet diameter mm 25 40 40 40 50 65 65
Feed water inlet diameter 20 25 25 25 40 40 40
Steam outlet diameter 25 40 40 50 65 80 100
Pipe diameter 25 25 25 25 25 25 25
Safety valve diameter 20 25 25 32 25、32 40、40 40、40
Auto discharge - - - 10 10 15 15
Chimney diameter mm 200 250 330 330 360 400 450
尺
寸
ONの 		Boiler dimensions Length mm 1500 1750 1900 2000 2200 2400 2400
Width mm 1150 1250 1120 1500 2200 2370 2470

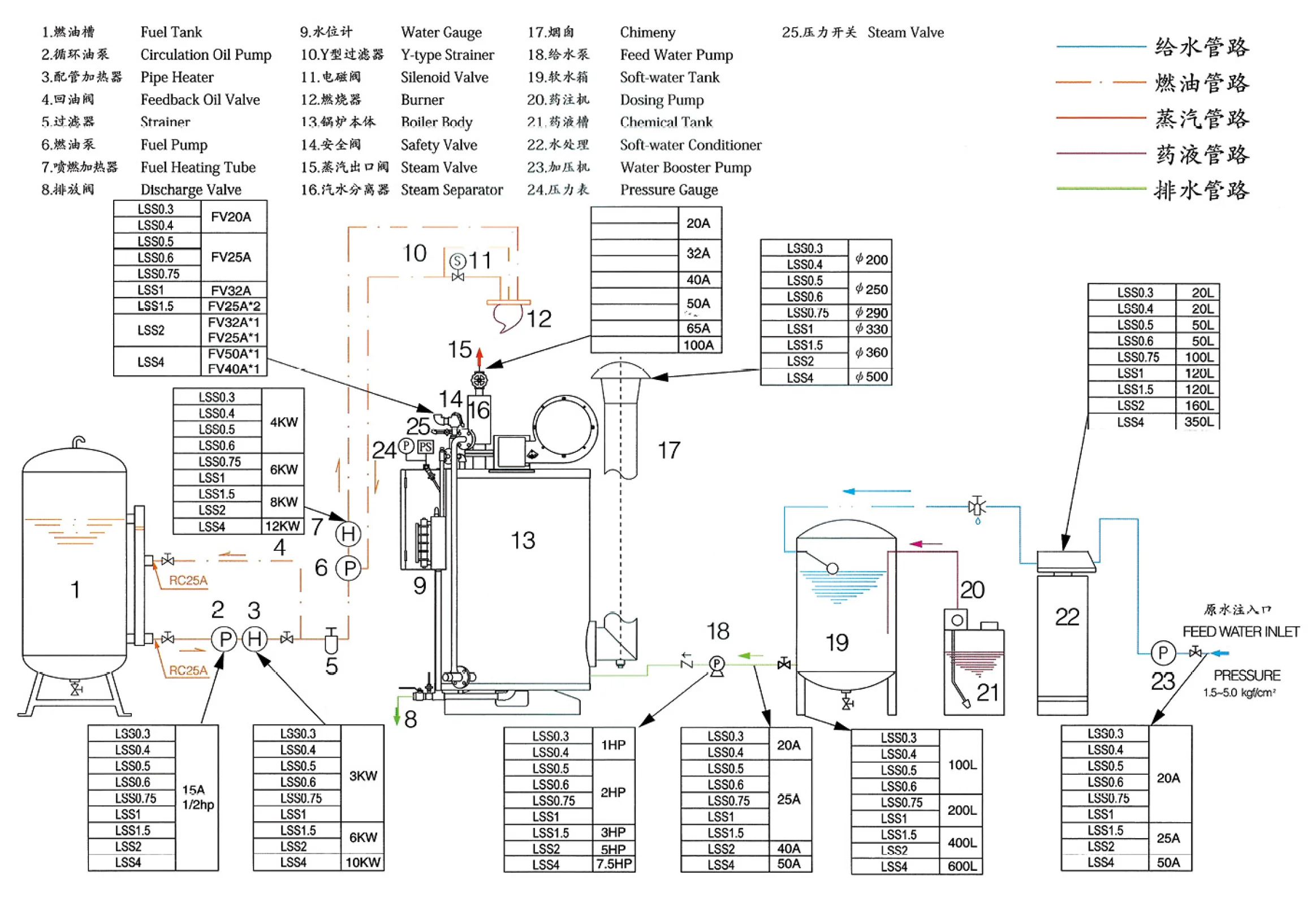

Supply Water and Heating System Schematic

Fuel Oil Gas Through-flow Steam Boiler

Why choose
Fuel Oil Gas Through-flow Steam Boiler?

Introducing the Fuel Oil Gas Through-flow Steam Boiler, a cutting-edge innovation in efficient and eco-friendly industrial heating. Its breakthrough through-flow design and low-nitrogen technology ensure rapid steam availability within minutes, highlighting a global leading performance. With automatic control for seamless and safe operations, it boasts combustion efficiency rates of 92%-96%, resulting in significant energy savings.

The boiler operates with whisper-quiet efficiency and features stable combustion with ultra-low nitrogen emissions, adhering to the most stringent environmental standards. The high-speed flow of combustion gases between water tube clusters facilitates exceptional heat transfer and absorption, ensuring maximum operational efficacy and reliability.

Enhanced with a state-of-the-art network terminal monitoring system, users gain access to real-time diagnostics, facilitating immediate troubleshooting and operational oversight. The boiler's construction is robust, featuring a preheater made of sandblasted, hot-dip galvanized seamless pipes, which promise an extended lifespan. This boiler stands as the epitome of industrial heating technology, masterfully combining top-tier efficiency, environmental stewardship, and unmatched quality in one superior package.

Boiler Features

Through-flow structure and low-nitrogen technology, leading level domestically and internationally.
Ignition can obtain sufficient steam pressure in 4-5 minutes.
Combustion, steam pressure, and water level are all automatically controlled, ensuring safe and economical operation.
The high-speed flow of combustion gas between the water pipe groups results in good thermal convection, rapid heat absorption, and effective heat transfer.
Quiet operation, stable combustion, ultra-low nitrogen emissions, meeting the strictest environmental standards.
The furnace body structure has excellent heat absorption effects, and the combustion efficiency is 92%-96%.
High-quality, high-grade, fully automatic welding, standardized components, guaranteed quality.
Network terminal monitoring system, connected to the company's remote monitoring center, allowing real-time understanding and diagnosis of the boiler operation status and assistance in troubleshooting.
Can monitor multiple boilers at once and record fault occurrence timing, location, evaporation rate, fuel consumption, water supply, steam pressure, water pipe temperature, exhaust temperature, water supply temperature, etc. Daily and monthly reports can be printed.
The preheater uses seamless pipes that are treated with sandblasting and hot-dip galvanizing, extending their service life.

  • Host maintenance

    12 months

  • Auxiliary repair

    12 months

  • Guidance on installation

    Throughout

  • Guarantee

    Lifetime
